Everline® Fiber-Tek™ Seamless Fiberglass Door and Frame

Corrosive-Resistant Pedestrian/Entrance Doors
Products > Everline® Pedestrian/Entrance Doors > Everline® Fiber-Tek™ Seamless Fiberglass Door and Frame

The Everline® Fiber-Tek™ Door is specifically designed for use in harsh environments. This one piece construction and molded door completely encapsulates all internal components, leaving a door that is free of cavities, exposed reinforcements and fasteners. Additional reinforcements can be placed in the mold cavity to easily accommodate all specialty hardware and vision panels. These doors and frames are made to size; making it perfect for any existing opening. The doors and frames are easy to install and maintain; they come with a pre-finished coating which requires no painting or finishing in the field. Fiber-Tek™ doors are Florida Building Code approved including High Velocity Hurricane Zone (HVHZ). They have passed the slam and durability test per ANSI A250.4.

  • Lifetime warranty against corrosion, rotting and peeling.
  • Engineered to withstand daily washdowns.
  • Ideal where FDA/USDA/OSHA regulations must be considered.
  • Clean with disinfectants, detergents or acids.
  • Seamless fiberglass technology provides a door impervious to moisture, gases and bacteria.
  • Corrosive resistant doors are useful in waste water treatment facilities, pharmaceutical facilities, clean-rooms, chemical plants, food processing and corrosive environments.

Technical Specifications

  • Sizes: Custom
  • Thickness: 13/4″ (44.5 mm) thick
  • Standard Core Material: Urethane foam
  • Core Assembly: Stiles and rails are securely bonded to core. 11/2″ (38.1 mm) square pultruded fiberglass tubes. A polyester-based resin filled with 1/4″ (6.35 mm) chopped glass strands and aerosil is used for reinforcements and corner blocks.
  • Options:
    • Core Material: End grain balsa, honeycomb or mineral core
    • UL Approved: 20 to 90 minutepositive pressure fiberglass doors and frames
    • Colors:
      • Standard:
        screen-shot-2016-11-05-at-7-09-52-pm
      • Options: 25 colors available. Standard matte coat finish. A polyurethane finish in high sheen or low sheen is available upon request.
        screen-shot-2016-11-05-at-7-09-57-pm
      • * These colors are also available in pebble texture with the color throughout the face sheet. Custom color matching available.

Vision Panel and Louver Options

Factory installed vision panels and louvers ensure the proper glazing material and louvers are used to conform with building codes for both fire and safety.
screen-shot-2016-11-05-at-7-10-10-pm

Door Glazing Options

screen-shot-2016-11-05-at-7-10-19-pm

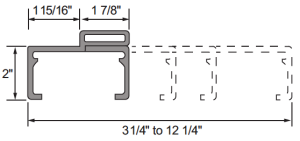

Frame Profile

Jamb depth: 5 3/4″ (146.1 mm) standard, face dimension 2″ (50.8 mm), custom widths available.
screen-shot-2016-11-05-at-7-10-28-pm
