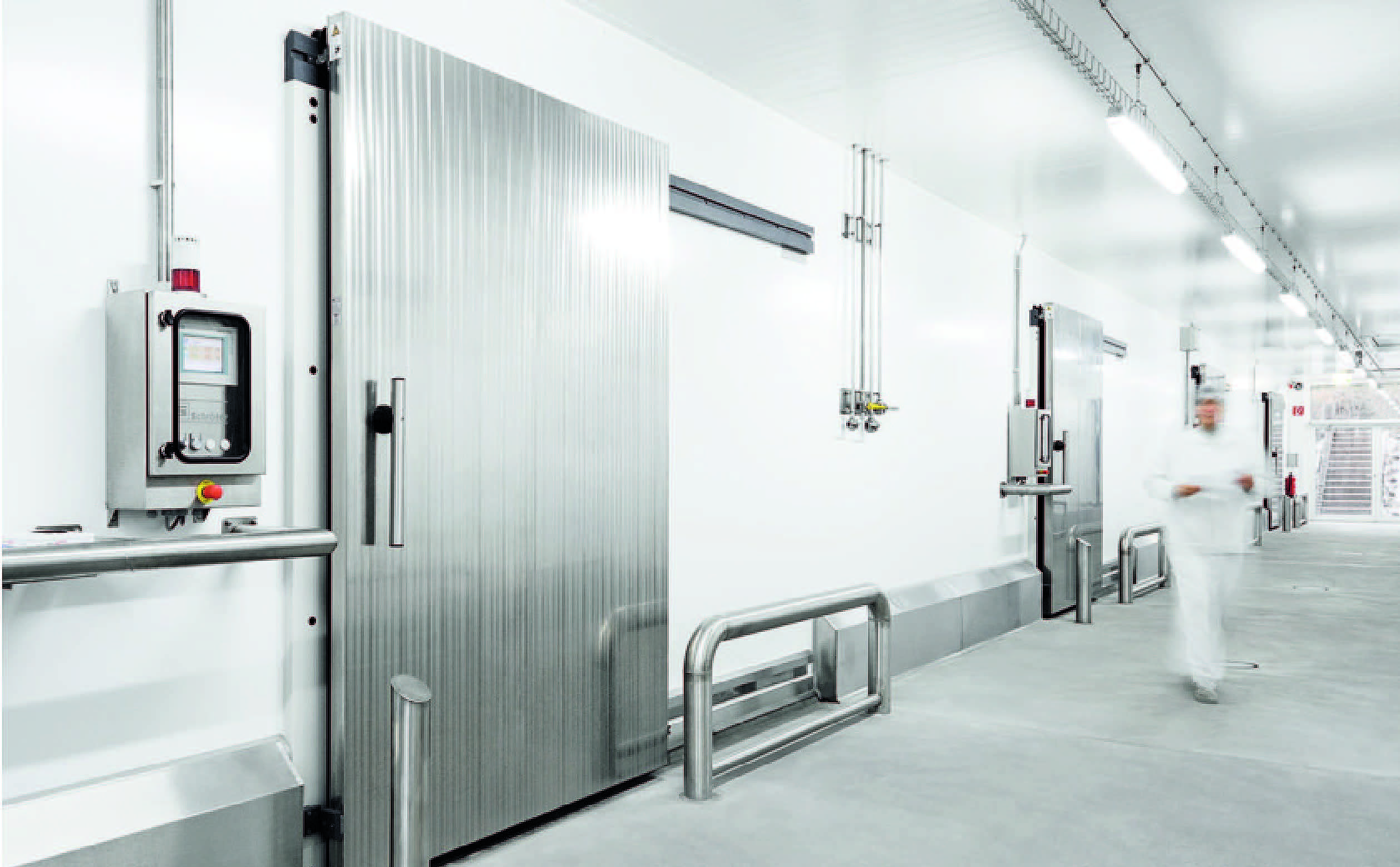

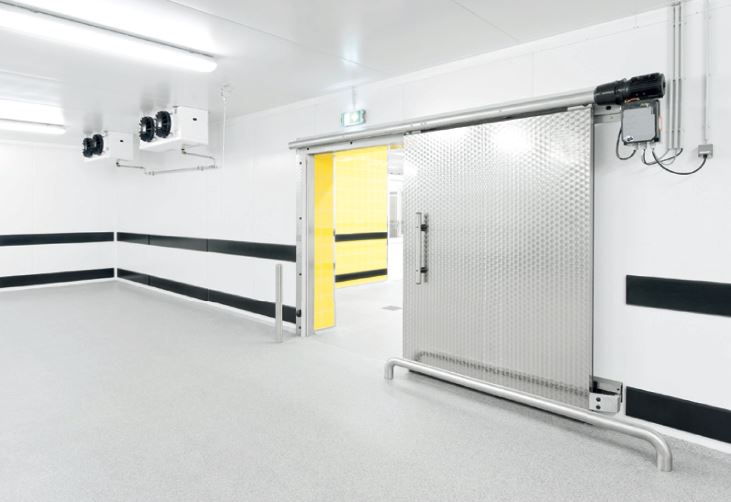

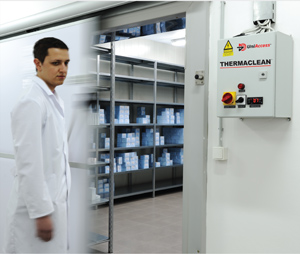

Our high efficiency cold storage sliding doors are perfectly suited for exceptional demand and strain where high traffic and frequent openings and closings are taking place. Offered in a variety of configurations to suit your specific installation requirements, our automatic sliding doors meet the highest demands in regard to hygiene and cleaning. The ThermaClean® A Series has an integrated light grid system with non-contact closing edge to guarantee maximum safety for personnel. These doors also have the highest standard of hygiene, as the non-contact mode of operation prevents all contact contamination. We can design these doors to meet your strictest requirements, customizing them to your facilities special process, unique configurations and sizes.
- Ideally qualified for special demands like meat rail passages with return conveyor, automatic conveyor systems in deep-freeze areas or shock-freezer doors.
- Our design makes it ideal for high deep-freeze storage rooms.
- Combines functionality, simplicity and economy.
High Level Hygiene
This construction involves a high level of hygiene, as the ThermaClean® A Series can be easily cleaned and offers the greatest contamination control among the door styles offered.
Technical Specifications
- Application: Chill & Freezer Rooms
- Temperature Range: 32°F to -18.4°F (0°C to -28°C)
- Opening Size: Max 13′ W x 11’5″ H (3962 mm x 3505 mm), special sizes on request
- Track: Aluminum, Stainless Steel, PE-plastic
- Door Panel: Single or Double
- Thickness: 3 1/4″ (82.6 mm) to 4 3/4″ (120.7 mm) PU foam-filled (CFC-free)
- Options
- Motors: All standard sliding doors are equipped with an IP 65-rated electric drive unit with opening and closing speeds of 5¹” per second (1.3 m/sec)
- Control: Radio pull switch, radar detector, radio remote control
- Safety & Warning Signal Devices: Control box, cables, etc.
- Window Openings: Custom designed to fit your visual needs from a small units up to an XXL-version, double glazing with CNS-frame on request
- Meat Rail Passages: Available in different versions: with an interrupted guide rail, a door leaf cut-out or a goose neck
- Opening and Closing: The opening and closing is carried out through a shunt lock with integrated emergency tripping or through a reversion lock in case of internal sliding doors
- Stainless Steel Surface Options: Matte brush, circular brush, strip finish etc.
Technical Drawings
Single Sliding Door

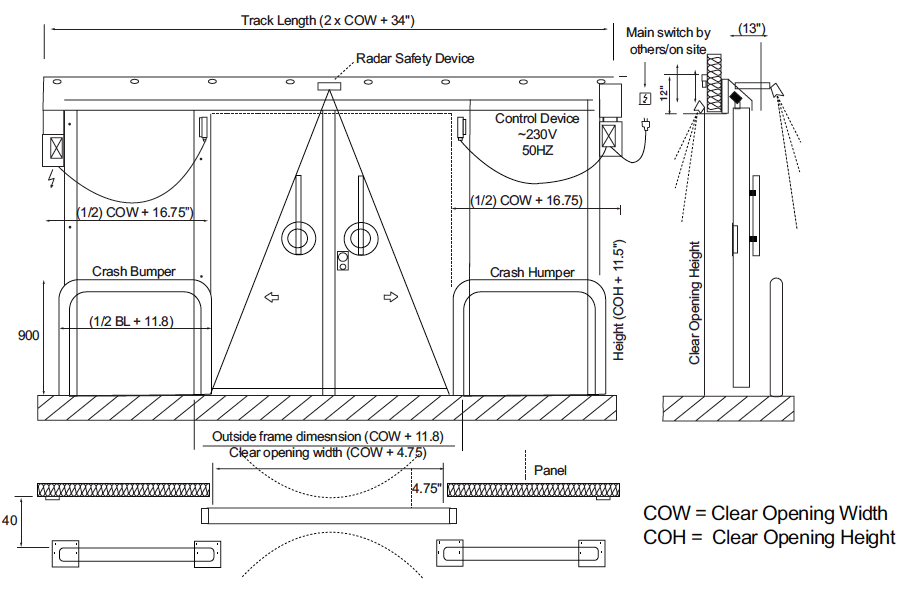

Bi-Parting Door
